Name: CARBON TAPS - UNC/UNFAS PER ASME/ANSI B94.9
SKU: 941
Availability: InStock

CARBON TAPS – UNC/UNFAS PER ASME/ANSI B94.9

In Stock

Have a Question? Ask a Specialist

Price match guarantee

Always the correct part

We know our products

Quick & Hassle Free

Description

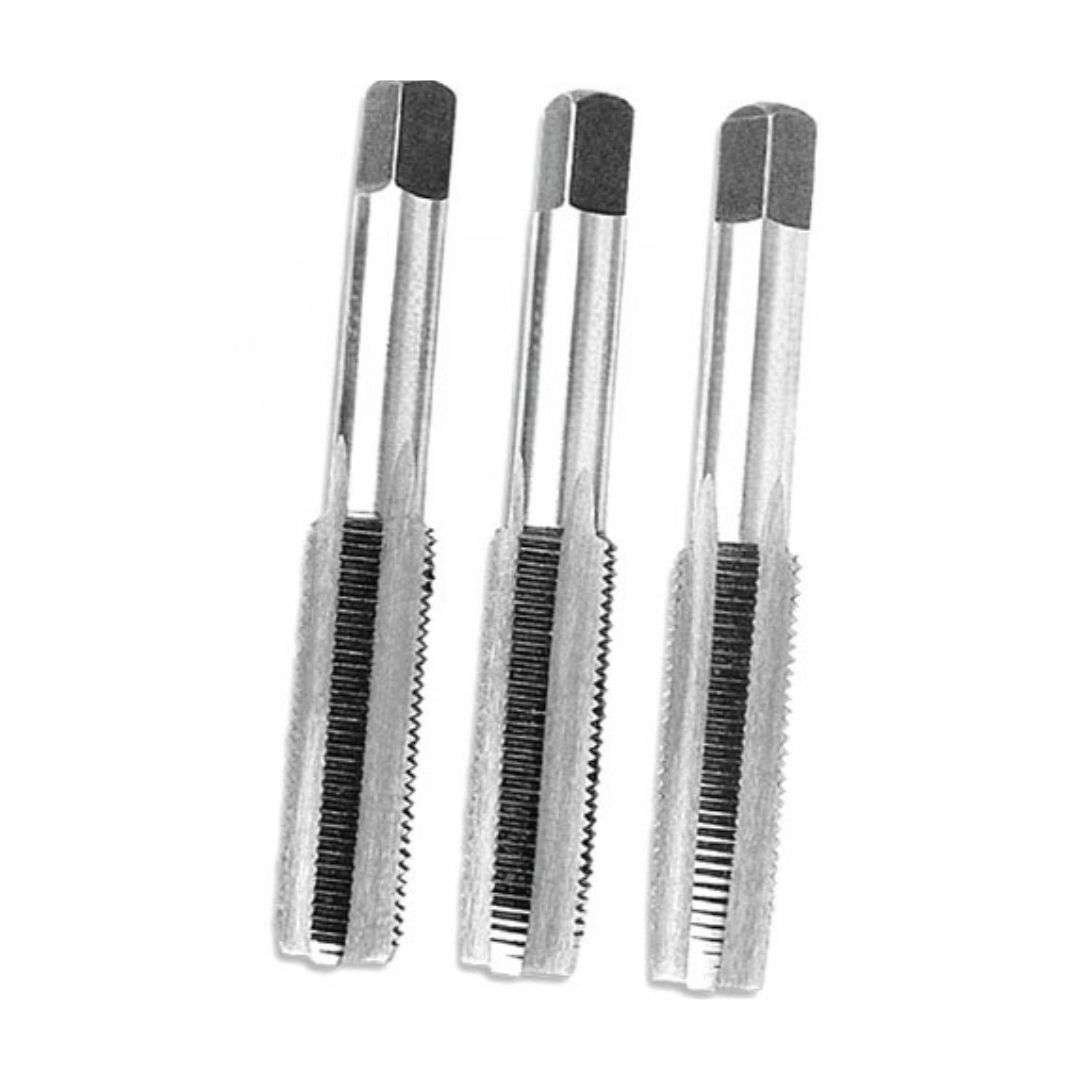

SET OF THREE PLUG,BOTTOM&TAPER TAPS
THREAD SIZE	NO.OF FLUTES	THREAD LENGTH	OVER ALL LENGTH
Add	Add	Add	Add
1/4”-20 UNC	4	1”	2-1/2”
1/4”-28 UNF	4	1”	2-1/2”
5/16”-18 UNC	4	1-1/8”	2-23/32”
5/16”-24 UNF	4	1-1/8”	2-23/32”
3/8”-16 UNC	4	1-1/4”	2-15/16”
3/8”-24 UNF	4	1-1/4”	2-15/16”
7/16”-14 UNC	4	1-7/16”	3-5/32”
7/16”-20 UNF	4	1-7/16”	3-5/32”
1/2”-13 UNC	4	1-21/32”	3-3/8”
1/2”-20 UNF	4	1-21/32”	3-3/8”
9/16”-12 UNC	4	1-21/32”	3-19/32”
9/16”-18 UNF	4	1-21/32”	3-19/32”
5/8”-11 UNC	4	1-13/16”	3-13/16”
5/8”-18 UNF	4	1-13/16”	3-13/16”
3/4”-10 UNC	4	2”	4-1/4”
3/4”-16 UNF	4	2”	4-1/4”
7/8”-9 UNC	4	2-7/32”	4-11/16”
7/8”-14 UNF	4	2-7/32”	4-11/16”
1”-8 UNC	4	2-1/2”	5-1/8”
1”-12 UNF	4	2-1/2”	5-1/8”
1-1/8”-7 UNC	4	2-9/16”	5-7/16”
1-1/8”-12 UNF	4	2-9/16”	5-7/16”
1-1/4”-7 UNC	4	2-9/16”	5-3/4”
1-1/4”-12 UNF	6	2-9/16”	5-3/4”
1-3/8”-6 UNC	4	3”	6-1/16”
1-3/8”-12 UNF	6	3”	6-1/16”
1-1/2”-6 UNC	4	3”	6-3/8”
1-1/2”-12 UNF	6	3”	6-3/8”
