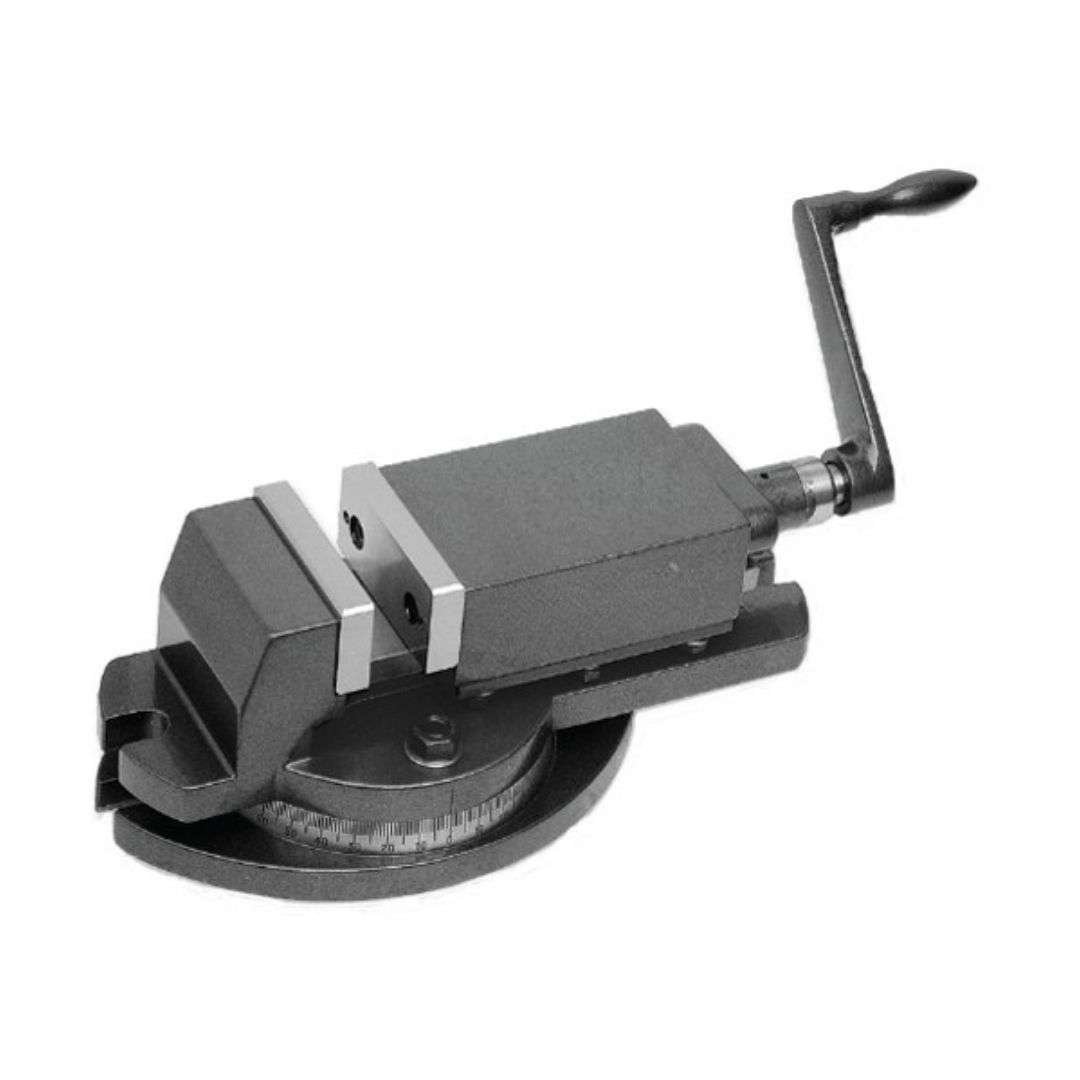

Description
- Manufactured from Closed Grain high tensile Seasoned Cast Iron
- Horizontal Swivel Base Model has 360° graduations.
- Jaws are hardened and ground.
- Vices are attached to the milling machine’s bed or table using T-bolts, clamps, or other securing mechanisms and can be set at any angle along with the vertical axis.
- Precision is crucial in milling operations, and milling machine vices are designed to provide accurate and repeatable clamping to ensure the quality of the machined parts
| Jaw Width | Jaw Opening | Jaw Depth | |||
| Inch | mm | Inch | mm | Inch | mm |
| 2 | 50 | 2 | 50 | 1 | 25 |
| 3 | 75 | 3 | 75 | 1-1/4 | 31 |
| 4 | 100 | 4 | 100 | 1-1/2 | 38 |
| 5 | 125 | 5 | 125 | 2 | 50 |
| 6 | 150 | 6 | 150 | 2-1/8 | 54 |
