Description
Features

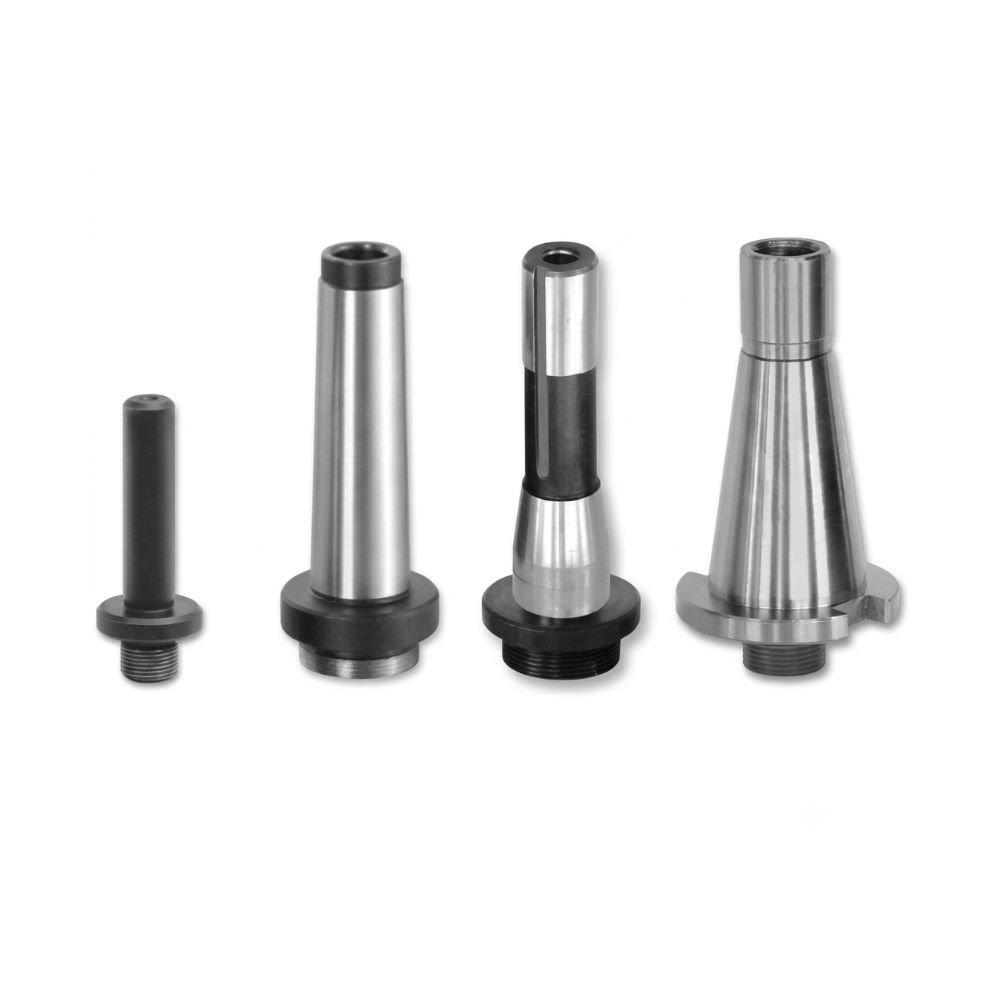

- Shanks for Boring Heads manufactured from Alloy steel hardened and precision ground to ensure long life and accuracy. These shanks allow versatile use of boring heads.
Technical Data
| Ordering No. | Description | Mounting Thread Size Inch |
| GBH 128 | Morse Taper 2 with 3/8-16 DRAW BAR | 7/8 x 20 |
| GBH 129 | Morse Taper 2 with M10 DRAW BAR | 7/8 x 20 |
| GBH 130 | Morse Taper 2 with 3/8-16 DRAW BAR | 1-1/2 x 18 |
| GBH 131 | Morse Taper 3 with 3/8-16 DRAW BAR | 1-1/2-18 x 20 |
| GBH 132 | Morse Taper 3 with M12 DRAW BAR | 1/1 2-18 x 18 |
| GBH 133 | Morse Taper 3 with M12 DRAW BAR | 7/8 x 20 |
| GBH 134 | Morse Taper 4 with M12 DRAW BAR | 1-1/2 x 18 |
| GBH 135 | ISO 30 1/2-13 DRAW BAR | 1-1/2 x 18 |
| GBH 136 | ISO 40 5/8-11 DRAW BAR | 1-1/2 x 18 |
| GBH 137 | 1/2″ Straight Shank | 7/8 x 20 |
| GBH 138 | 5/8″ Straight Shank | 7/8 x 20 |
| GBH 139 | 3/4″ Straight Shank | 7/8 x 20 |
| GBH 140 | 1″ Straight Shank | 1-1/2 x 18 |
| GBH 141 | 12mm Straight Shank | 7/8 x 20 |
| GBH 142 | 16mm Straight Shank | 7/8 x 20 |
| GBH 143 | 20mm Straight Shank | 7/8 x 20 |
| GBH 144 | 25mm Straight Shank | 1-1/2 x 18 |
| GBH 145 | BT40 M16 DRAW BAR | 1-1/2 x 18 |
| GBH 146 | BT30 M12 DRAW BAR | 1-1/2 x 18 |
| GBH 147 | BT50 M24 DRAW BAR | 1-1/2 x 18 |
| GBH 148 | CAT 30 | 1-1/2 x 18 |
| GBH 149 | CAT 40 | 1-1/2 x 18 |
